ASTM A 975 Gabion Basket Retaining Wall Erosion Control Gabion Box Kenya 2x1x1m
Products Description:
Gabion baskets woven type refer to a rectangular box with double or triple twist hexagonal steel mesh fabric made form galfan wire or PVC wire. They are successfully applied to various rough conditions. Such as gabion retaining wall, gabion fence and gabion channels, etc.
Besides galvanizing, the extra PVC coating could provide stronger corrosion resistance ability. It is further extruded with 0.5mm thick PVC Coating. The PVC coating is UV stabilized as per ASTM A 975.
The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion.

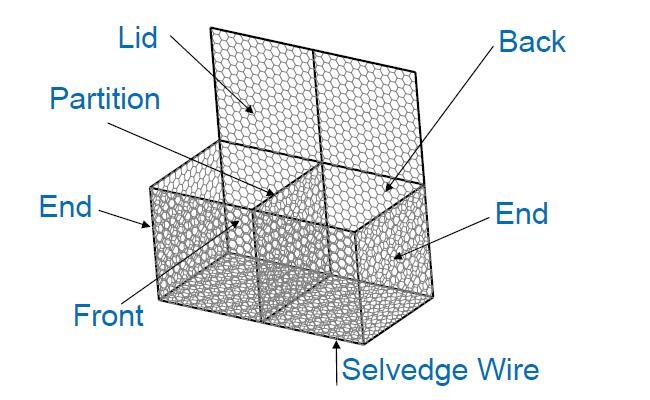

Selvedge / Edge wire which is a thicker and heavier wire is used to reinforce the edges and transverse diaphragm. It gives greater rigidity and shape to the Gabion Basket.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
| 80×100mm 100×120mm | +16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 |
| 2 | 1 | 0.5 | 0/1 |
| 2 | 1 | 1 | 0/1 |
| 3 | 1 | 0.5 | 0/2 |
| 3 | 1 | 1 | 0/2 |
| 4 | 1 | 1 | 0/3 |

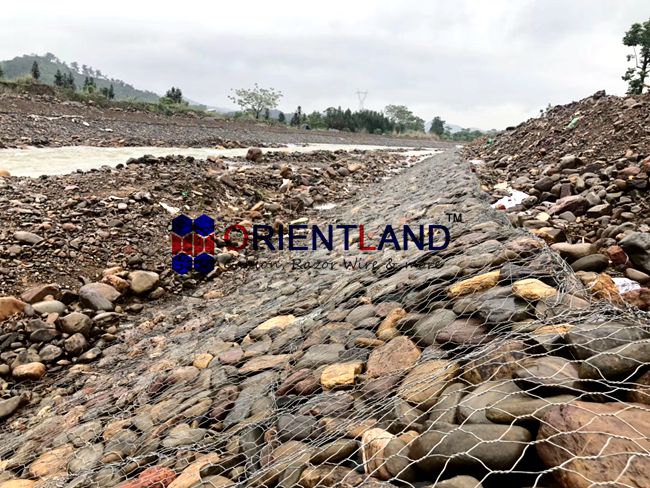

Gabion box application:
- Control and guide of water or flood
- Preventing of rock breaking
- Rock fall protection
- Water and soil protection
- Bridge protection
- Strengthening structure of soil
- Protection engineering of seaside area.
- Port project
- Keep off dust wall
- Roadway protection.
Gabion advantage
1).Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2).Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3).This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.

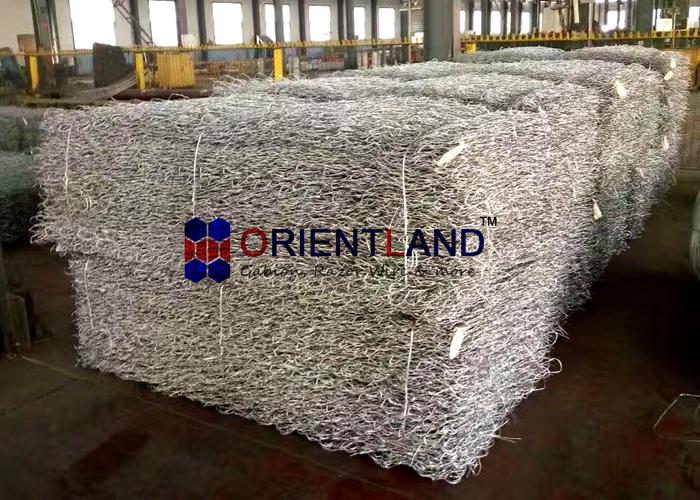

Gabion Box Packing:
FAQ:
1. How to make a inquiry of your Gabion?
You need to provide your prefored Material, Aperture size, Wire Diameter, Dimension and the Quantity, you can also indicate if you have
any special requirement. We'll provide formal quotation list once received your inquiry.
2. Could you provide free sample?
Yes,we can provide free sample.
3. How is your payment term?
Generally,our payment term is 30%T/T in advance and the balance against the copy of B/L. LC also could be acceptable. Other payment term could be negotiated.
4. How is your delivery time?
We always prepare enough stock material for your urgent order. Normally 1000pcs 2×1×1m gabion baskets only need 3 days to producr. For you specific order, we'll make the best solution.
