2×1×0.5m Gabion Wall Baskets Hexagonal Hole / Gabion Garden Wall

  • 1
  • 2

Brand Name : ORIENTLAND

Model Number : ORGWB031

Certification : ISO

Place of Origin : ANPING

MOQ : 2000 sqm

Price : USD 1.35-2.0 per sqm

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 sqm per day

Delivery Time : 7-10days

Packaging Details : Pallet or nude packing

Type : Wire Mesh Gabion

Material : Hot dipped galvanized wire, Galfan wire

Hole shape : Hexagonal

Mesh Wire Diameter : 2.7mm

Selvage Wire Diameter : 3.4mm

Binding Wire Diameter : 2.2mm

Aperture : 80×100mm

Twist Number : Double Twist

Application : Flood control retaining wall

Box size : 2m×1m×0.5m

Product Name : 2×1×0.5m Gabion Wall Baskets

Sample : Available and free

Contact Now

2*1*0.5m Gabion Wall Baskets

Products Description:

Gabion box or gabion basket are made of heavy galvanized wire / Zinc Aluminum (Galfan) coated wire / PVC coated wires, the mesh shape is hexagonal style. The gabion boxes are used widely in slope protection, foundation pit suporting, mountain rock holding, river and dams scour protection.


Gabion box can be supplied in various lengths, widths and heights. In order to strengthen the boxes, all the structure edges shall be selvedged with wire of bigger diameter(normally it's 0.7mm bigger than the mesh wire).

2×1×0.5m Gabion Wall Baskets Hexagonal Hole / Gabion Garden Wall

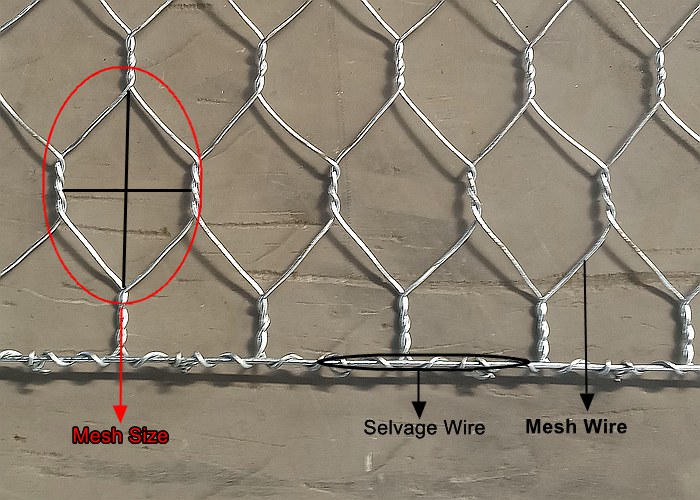

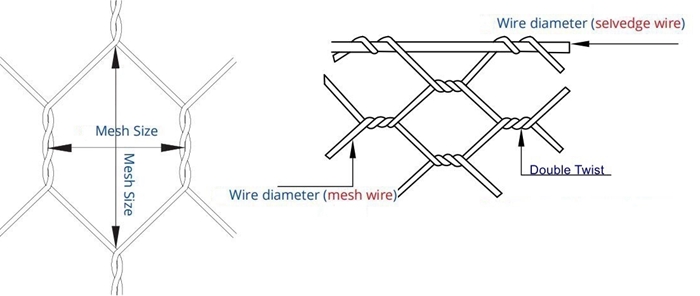

Gabion Wire Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275

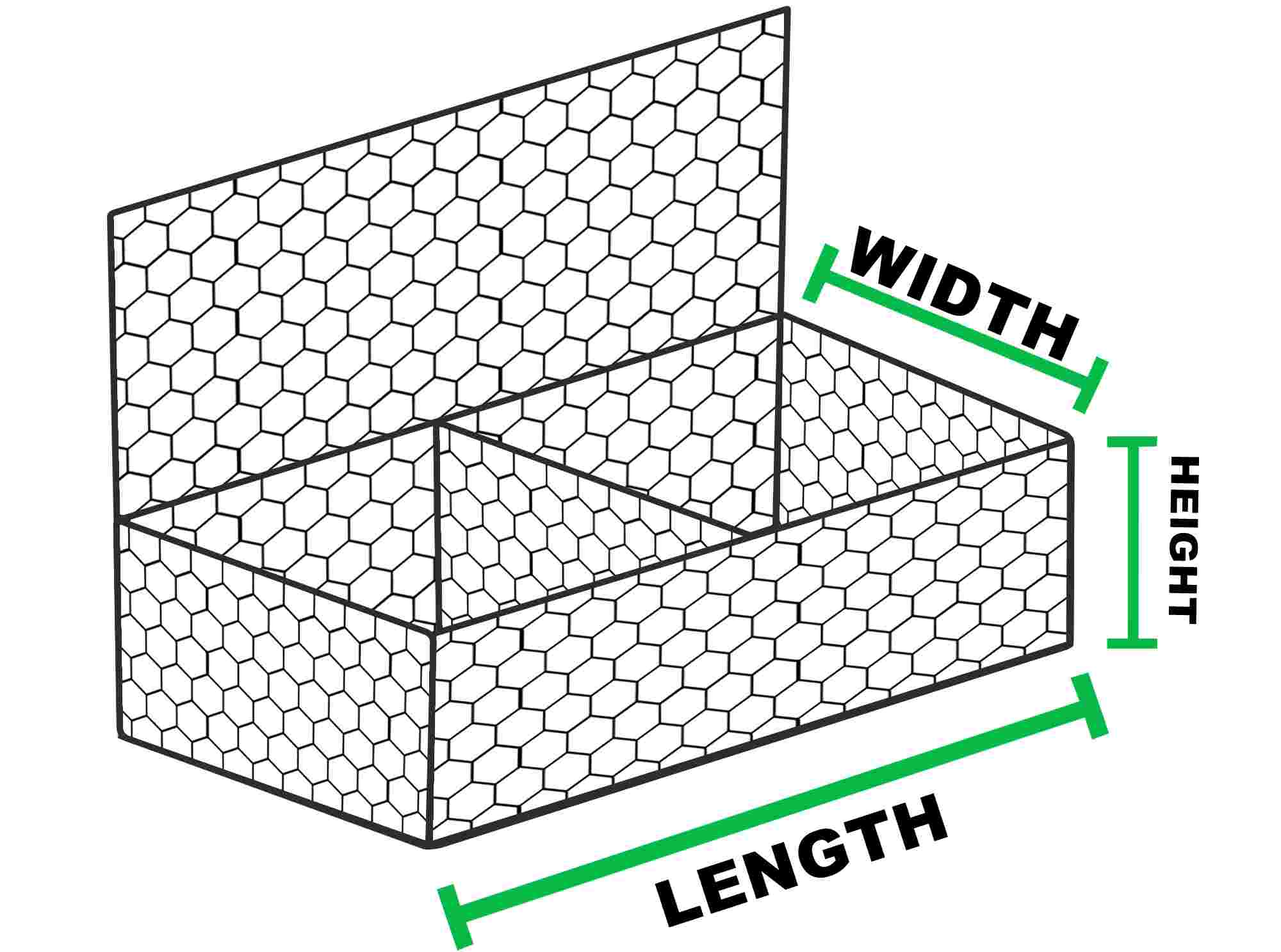

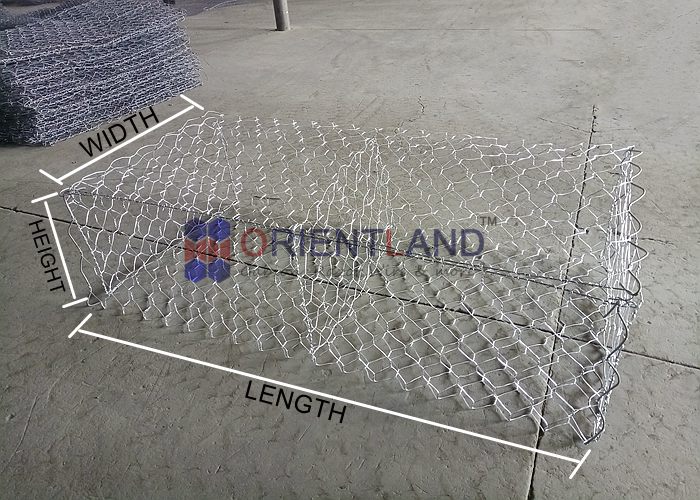

Gabion specifications:

Mesh Size Tolerance Mesh Wire Diameter Length Width Height Diaphragms

80×100mm

100×120mm

 +16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3

2×1×0.5m Gabion Wall Baskets Hexagonal Hole / Gabion Garden Wall

2×1×0.5m Gabion Wall Baskets Hexagonal Hole / Gabion Garden Wall

2×1×0.5m Gabion Wall Baskets Hexagonal Hole / Gabion Garden Wall

2×1×0.5m Gabion Wall Baskets Hexagonal Hole / Gabion Garden Wall

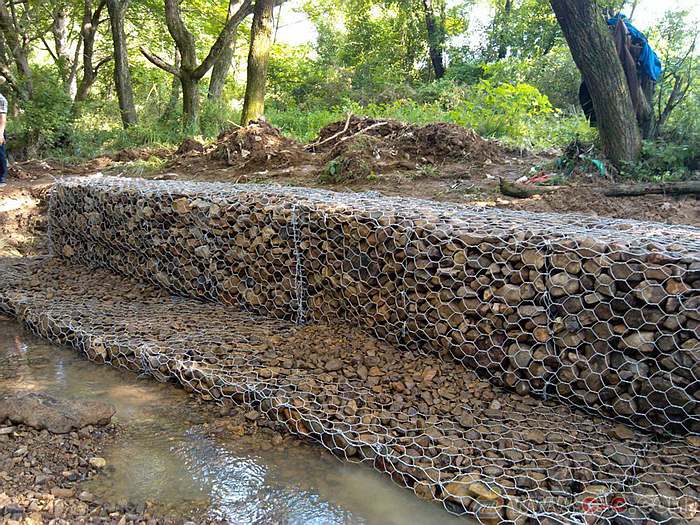

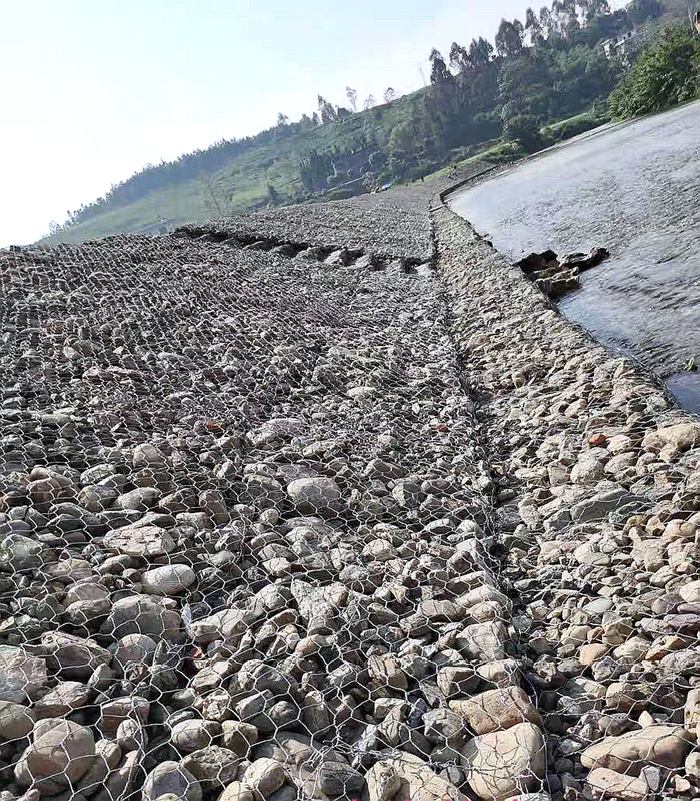

Gabion box application:

  • Retaining wall structures
  • River and canal training works
  • Erosion and scour protection; roadway protection; bridge protection
  • Hydraulic structures, dams and culverts
  • Coastal defence and protection works
  • Rockfall and soil erosion protection

2×1×0.5m Gabion Wall Baskets Hexagonal Hole / Gabion Garden Wall

2×1×0.5m Gabion Wall Baskets Hexagonal Hole / Gabion Garden Wall

Gabion Packing

2×1×0.5m Gabion Wall Baskets Hexagonal Hole / Gabion Garden Wall

Mostly our gabion are packed like the above picture. One pressured bundle was packed in 60-100units of gabion box. Mostly one units is a complete box, you just need open it and filled it with stones. Then linking it with the binding wire we've present.

Gabion wire mesh features:
1.Great Perviousness, pliability and anti-corrosion.


2. Resist the scour


3. Holistic capability


4. Easy to Construct


5. Economical and environmental protection
