Double Twisted Hexagonal Woven Welded Mesh Gabion Baskets Es Soil Retention

  • 1
  • 2

Brand Name : ORIENTLAND

Model Number : ORGWB029

Certification : ISO

Place of Origin : ANPING

MOQ : 2000 sqm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 sqm per day

Delivery Time : 7-10days

Packaging Details : Pallet or nude packing

Type : Gabion Wall Basket

Material : Hot dipped galvanized wire, Galfan wire, PVC coated wire

Hole shape : Hexagonal

Wire gauge : 2.0/2.7/3.0/4.0mm

Aperture : 80×100mm, 100×120mm, 120×140mm

Application : Flood control retaining wall, river bank vation, slope protection

Box size : 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m

Sample : Available and free

Contact Now

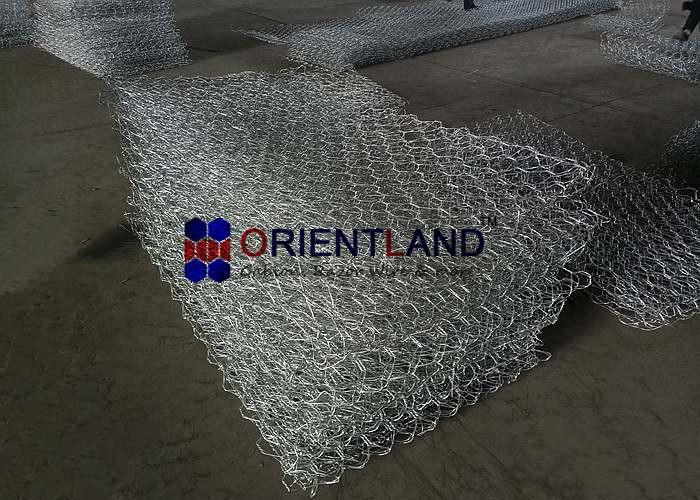

Double Twisted Hexagonal Woven Mesh Gabions es Soil Retention Gabion Baskets

Products Description:

Double Twisted Hexagonal Mesh Gabions & es have been used for channel linings, river training, soil retention, slope stabilization, and other applications successfully throughout the world for over 100 years. Double Twisted Mesh Gabions & es offer many advantages over other types of construction materials. Some of the advantages offered by double twisted mesh gabions & es are flexibility, durability, strength, permeability, ecology, reliability, longevity, low cost, and an aesthetic appearance.

Double Twisted Hexagonal Woven Welded Mesh Gabion Baskets Es Soil Retention

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275

Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

 +16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3

Manufactured in Orientland, wovenmesh options of 80x100x2.70mm, and 60x80x2.20mm aperture. With salvage wire of 3.40mm diameter, supplied with 2.20mm binding wire. We supply these materials in standard sized Gabion boxes or mesh rolls. Class A Galvanised, Galfan or with Grey PVC coating.

Gabion box application:

  • Retaining wall structures
  • River and canal training works
  • Erosion and scour protection; roadway protection; bridge protection
  • Hydraulic structures, dams and culverts
  • Coastal defence and protection works
  • Rockfall and soil erosion protection

Double Twisted Hexagonal Woven Welded Mesh Gabion Baskets Es Soil Retention
