Erosion Control Galvanized Gabion Wall Baskets PVC Coated Gabion Box

  • 1
  • 2

Brand Name : ORIENTLAND

Model Number : ORGWB026

Certification : ISO

Place of Origin : ANPING

MOQ : 2000 sqm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 sqm per day

Delivery Time : 7-10days

Packaging Details : Pallet or nude packing

Type : Gabion Wall Basket

Material : Hot dipped galvanized wire, Galfan wire, PVC coated wire

Hole shape : Hexagonal

Wire gauge : 2.0/2.7/3.0/4.0mm

Aperture : 80×100mm, 100×120mm, 120×140mm

Application : Flood control retaining wall, river bank vation, slope protection

Box size : 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m

Sample : Available and free

Contact Now

PVC coated Gabion Box Erosion Control Galvanized Gabion Baskets

Products Description:

We manufacture Gabions using a Class A Galvanising – or together with an additional 0.5mm thickness PVC coating – for hexagonal type woven wire mesh gabion materials.

The woven mesh has a high tensile strength, as well as a high compressive strength when filled with suitable un-weathered rock.

Our materials are quality assured, meet with the SANS 1580 specification and are used in a very wide range of applications.

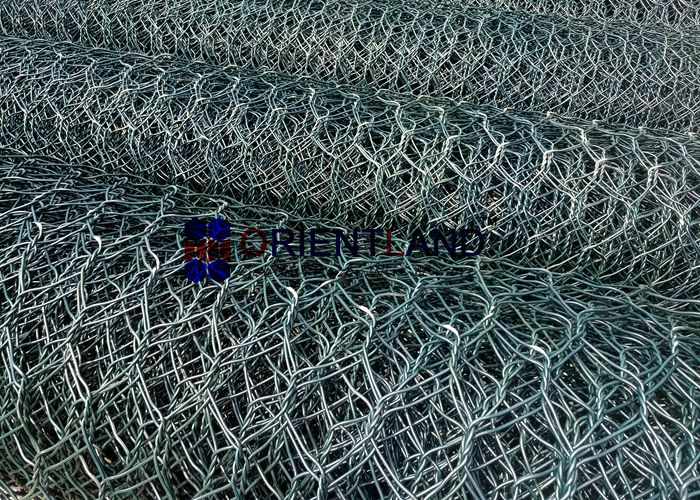

Erosion Control Galvanized Gabion Wall Baskets PVC Coated Gabion Box

Erosion Control Galvanized Gabion Wall Baskets PVC Coated Gabion Box

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275

Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

 +16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3

Erosion Control Galvanized Gabion Wall Baskets PVC Coated Gabion Box

River Standard Sizes
Length(m) x Width(m) x Height(m) = Volume (m³) or Length x Width = Plan Area (m2)

2x1x0.3 (0.6m³)
6x2x0.17 (2.04m³)
3x1x0.3 (0.9m³) 6x2x0.23 (2.76m³)
4x1x0.3 (1.2m³) 6x2x0.30 (3.60m³)

Gabion box application:

  • Retaining wall structures
  • River and canal training works
  • Erosion and scour protection; roadway protection; bridge protection
  • Hydraulic structures, dams and culverts
  • Coastal defence and protection works
  • Wall Cladding
  • Rockfall and soil erosion protection

Erosion Control Galvanized Gabion Wall Baskets PVC Coated Gabion Box
