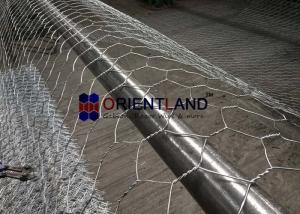

River Training Gabion Baskets Roadway Drainage Gabion Wall Wire Mesh

  • 1
  • 2

Brand Name : ORIENTLAND

Model Number : ORGWB030

Certification : ISO

Place of Origin : ANPING

MOQ : 2000 sqm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 sqm per day

Delivery Time : 7-10days

Packaging Details : Pallet or nude packing

Type : Gabion Wall Basket

Material : Hot dipped galvanized wire, Galfan wire, PVC coated wire

Hole shape : Hexagonal

Wire gauge : 2.0/2.7/3.0/4.0mm

Aperture : 80×100mm, 100×120mm, 120×140mm

Application : Flood control retaining wall, river bank vation, slope protection

Box size : 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m

Sample : Available and free

Contact Now

River Training Gabion Baskets Roadway Drainage Gabion Mesh

Products Description:

Gabions are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Gabions and geotextiles are normally used together to reduce water velocities and to re-capture river bed sediment in streams.


Flat Gabions, called River or es, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour.


They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures.

River Training Gabion Baskets Roadway Drainage Gabion Wall Wire Mesh

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275

Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

 +16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3

River Standard Sizes
Length(m) x Width(m) x Height(m) = Volume (m³) or Length x Width = Plan Area (m2)

2x1x0.3 (0.6m³)
6x2x0.17 (2.04m³)
3x1x0.3 (0.9m³) 6x2x0.23 (2.76m³)
4x1x0.3 (1.2m³) 6x2x0.30 (3.60m³)

River Training Gabion Baskets Roadway Drainage Gabion Wall Wire Mesh

Gabion box application:

  • Retaining wall structures
  • River and canal training works
  • Erosion and scour protection; roadway protection; bridge protection
  • Hydraulic structures, dams and culverts
  • Coastal defence and protection works
  • Wall Cladding
  • Rockfall and soil erosion protection
