Flexible High Strength Wire Gabion Wall Baskets Revegetation PVC Coated Gabion Weirs

  • 1
  • 2

Brand Name : ORIENTLAND

Model Number : ORGWB027

Certification : ISO

Place of Origin : ANPING

MOQ : 2000 sqm

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 sqm per day

Delivery Time : 7-10days

Packaging Details : Pallet or nude packing

Type : Gabion Wall Basket

Material : Hot dipped galvanized wire, Galfan wire, PVC coated wire

Hole shape : Hexagonal

Wire gauge : 2.0/2.7/3.0/4.0mm

Aperture : 80×100mm, 100×120mm, 120×140mm

Application : Flood control retaining wall, river bank vation, slope protection

Box size : 2m×1m×1m, 1m×1m×1m, 2m×1m×0.5m

Sample : Available and free

Contact Now

Flexible High Strength Wire Gabion Baskets Revegetation PVC coated Gabion Weirs

Products Description:

The woven mesh has a high tensile strength, as well as a high compressive strength when filled with suitable un-weathered rock.

Our materials are quality assured, meet with the SANS 1580 specification and are used in a very wide range of applications.

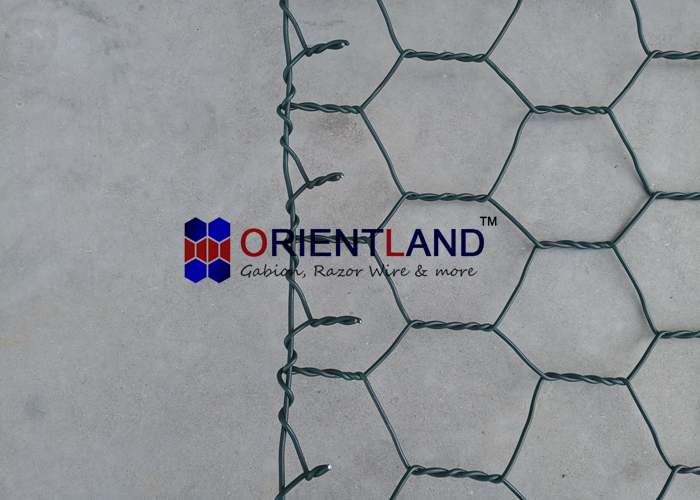

We manufacture Gabions using a Class A Galvanising – or together with an additional 0.5mm thickness PVC coating – for hexagonal type woven wire mesh gabion materials.

Flexible High Strength Wire Gabion Wall Baskets Revegetation PVC Coated Gabion Weirs

Flexible High Strength Wire Gabion Wall Baskets Revegetation PVC Coated Gabion Weirs

Gabion Technical Parameter:

Wire dia.(mm) 2.0 2.2 2.4 2.7 3.0 3.4 3.9
Tolerance(mm) 0.05 0.06 0.06 0.06 0.07 0.07 0.07
Min. Zinc coating(g/m2) 215 230 230 245 255 265 275

Gabion specifications:

Mesh Size Tolerance Diameter Length Width Height Diaphragms

80×100mm

100×120mm

 +16%/-4% 2.0-3.0mm 1.5 1 0.5 0
1.5 1 1 0
2 1 0.5 0/1
2 1 1 0/1
3 1 0.5 0/2
3 1 1 0/2
4 1 1 0/3

Flexible High Strength Wire Gabion Wall Baskets Revegetation PVC Coated Gabion Weirs

River Standard Sizes
Length(m) x Width(m) x Height(m) = Volume (m³) or Length x Width = Plan Area (m2)

2x1x0.3 (0.6m³)
6x2x0.17 (2.04m³)
3x1x0.3 (0.9m³) 6x2x0.23 (2.76m³)
4x1x0.3 (1.2m³) 6x2x0.30 (3.60m³)

Gabion box application:

Gabions have been around for over a hundred years and have a wide range of applications and new ones are continually being found. We have listed below the most common applications to date, manufactured using either woven double twisted or welded square mesh.

1. Mine – Primary Crush Tip Walls
2. River Diversion Structures
3. Rockfall Mesh Netting
4. Hydrochambers (Water Storage)
5. Biofilters (Sewage Plants)
6. Longitudinal River Structures
7. Low-Level and Irish Crossings
8. Roadway Culvert In and Outlet Structures
9. Dam Embankment Protection
10. Gabion Weirs
11. Gabion Ornaments
12. Gabion Stepped Spillway
13. River Training Structures
14. Channel Lining
15. Terrace Walls
16. Reinforced Soil Walls
17. Skin – Revetment Walls
18. Mass – Gravity Retaining Walls
19. Hiking Trail Steps
20. Architectural Applications

Gabion Babsket packing in bundles
