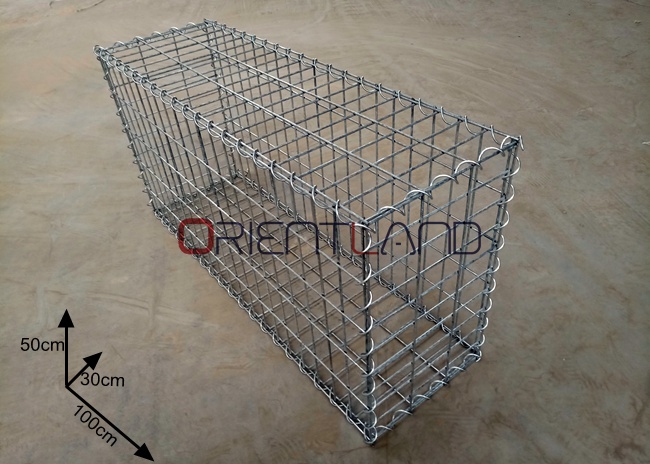

Square Hole Gabion Mesh Cage / Metal Gabion Baskets As Riverbank Protection

Brand Name : ORIENTLAND

Model Number : ORWGH002

Certification : ISO

Place of Origin : ANPING

MOQ : 200units

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4800units per month

Delivery Time : 15-20days

Packaging Details : Carton, Pallet

Type : Welded Mesh

Material : Hot-Dipped Galvanized Wire, Low-Carbon Iron Wire

Hole shape : Square, Rectangular

Wire gauge : 4.0mm or according to specific require

Application : Gabions, Fence, Retaining wall, Shore protection, Garden

Aperture : 50×50mm, 75×75mm, 50×100mm

Gabion box size : 1m×0.3m×0.3m, 1m×0.3m×0.5m, 1m×0.3m×0.8m, 1m×0.3m×1m, 1.5m×0.3m×1m, 2m×0.3m×1m

Packing : Carton, Iron Pallet, Wooden Pallet

Sample : Free

Contact Now

Galvanized Welded Wire Gabion Baskets Aperture 5cm×10cm Size 1m×0.5m×0.3m

Welded Wire Gabion Applications:

Filled with stones or similar materials and combined with other gabion baskets these wire constructs are ideal to be used as garden walls, noise barriers or for counteracting erosion as riverbank protection. These wire mesh cages can be further used as decorative garden elements, such as raised beds or seatings.

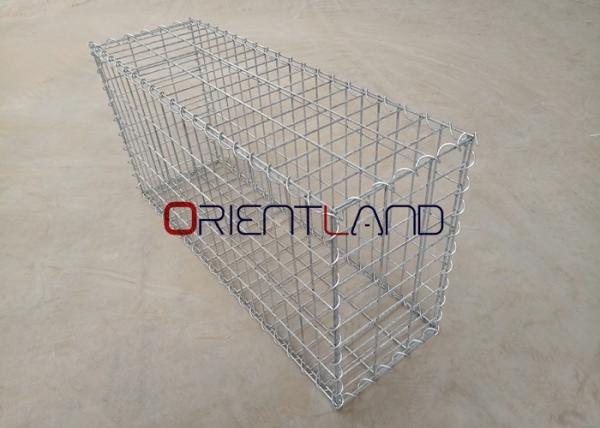

Square Hole Gabion Mesh Cage / Metal Gabion Baskets As Riverbank Protection

Specification of Welded Gabion Basket
Material Mesh Wire dia. Helical Wire dia. Aperture Dimension

Hot dipped galvanized wire

Galfan wire

Black wire

4.0mm

5.0mm

3.0mm

4.0mm

 5×5cm
5×10cm,
7.62×7.62cm,
10×10cm		 1×0.3×0.3m,
1×0.3×0.5m,
1×0.3×0.8m,
1×0.3×1.0m
1.5×0.3×1.0m
2.0×0.3×1.0m
All the specification could be customized

Surface treatment of the Welded Gabion basket:

  • PVC powder paint after welded (color can be custmoized)
  • PVC powder coated after welded(color can be custmoized)
  • Hot dipped galvanized after welded

Aperture of the Welded Gabion

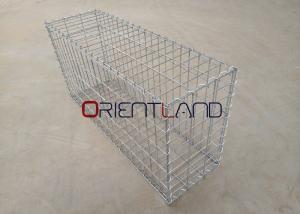

Square Hole Gabion Mesh Cage / Metal Gabion Baskets As Riverbank Protection

Helical Wire

Square Hole Gabion Mesh Cage / Metal Gabion Baskets As Riverbank Protection

Welded Wire Gabion Installation Procedure

Square Hole Gabion Mesh Cage / Metal Gabion Baskets As Riverbank Protection

Square Hole Gabion Mesh Cage / Metal Gabion Baskets As Riverbank Protection

Square Hole Gabion Mesh Cage / Metal Gabion Baskets As Riverbank Protection

Normally each gabion basket include 6-7pcs welded panels(contains diaphragms), 12-16pcs helical binders wire and 2-4pcs corner stiffeners(can be replaced by bracing wire).


Features of Welded Wire Gabions:

  • Easy for installation. No special technology needed.
  • Economic. Just fill the stone into the gabions and seal it.
  • Weather proof under natural destroy, corrosion resistant.
  • No collapse even under big scope of deforming.
  • Sludges in the stones is good for plant growing.
  • Mixed to form a integrity with the natural environment.
  • Less transport freight. It can be folded together for transport and further installation.

Packing and container loading:

  • Each unit put into a poly bag then packed with corrugated carton

Square Hole Gabion Mesh Cage / Metal Gabion Baskets As Riverbank Protection
