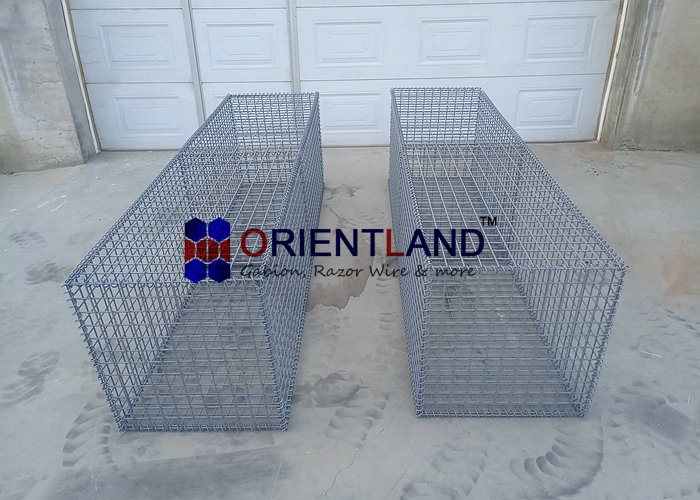

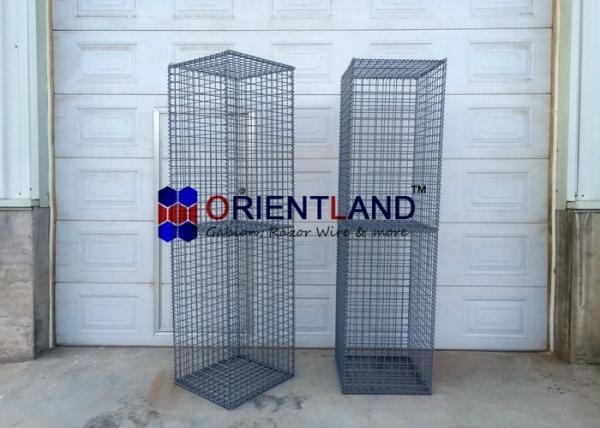

PVC Coated Welded Wire Gabion Baskets / Gabion Planter / Gabion Pillars

  • 1
  • 2

Brand Name : ORIENTLAND

Model Number : ORWGP015

Certification : ISO

Place of Origin : ANPING

MOQ : 200units

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4800units per month

Delivery Time : 15-20days

Packaging Details : Carton, Pallet

Type : Welded Mesh Gabion

Material : Hot-Dipped Galvanized Wire, Low-Carbon Iron Wire

Hole shape : Square, Rectangular

Wire gauge : 4.0mm,5mm or according to specific require

Application : Gabions, Fence, Retaining wall, Shore protection, Garden

Aperture : 50×50mm, 75×75mm, 50×100mm

Gabion box size : 1m×0.3m×0.3m, 1m×0.3m×0.5m, 1m×0.3m×0.8m, 1m×0.3m×1m, 1.5m×0.3m×1m, 2m×0.3m×1m

Packing : Carton, Iron Pallet, Wooden Pallet

Sample : Free

Contact Now

PVC Coated Welded Wire Gabion Baskets Gabion Planter Gabion Pillars

Gabion wire mesh is available in pre-cut panels which are used to make gabion baskets.
Versatile gabion baskets can be used for channel linings, architectural and landscaping features, soil stabilization, sea walls, breakwaters, bank revetments, monolithic gabion retaining walls, storm water filters, weirs and many other commercial and residential applications.

Gabions are a simple, quick and convenient way to build strong, flexible, permeable, and economical rock-filled structures that work well in a wide variety of situations.

PVC Coated Welded Wire Gabion Baskets / Gabion Planter / Gabion Pillars

The Gabion mesh sheet normally welded by Hot Dipped Galvanized Wire. For more corrosion resistance, after the mesh is welded, it is dipped in a bath of hot zinc, giving it excellent Galvanized After Weld (GAW) protection against rust and corrosion. For extremely harsh and more demanding environmental conditions, gabion mesh is also available with a thick and durable coating of PVC. This double protection assures a longer life time.

Specification of Welded Gabion Basket
Material Mesh Wire dia. Helical Wire dia. Aperture Dimension

Hot dipped galvanized wire
Galfan wire
Black wire

4.0mm
5.0mm

3.0mm
4.0mm

 5×5cm
5×10cm,
7.62×7.62cm,
10×10cm		 1×0.3×0.3m,
1×0.3×0.5m,
1×0.3×0.8m,
1×0.3×1.0m
1.5×0.3×1.0m
2.0×0.3×1.0m
All the specification could be customized

Aperture of the Welded Gabion
PVC Coated Welded Wire Gabion Baskets / Gabion Planter / Gabion Pillars

Helical Wire
PVC Coated Welded Wire Gabion Baskets / Gabion Planter / Gabion Pillars

Typical Applications:

  • residential, commercial, and industrial projects
  • retaining and separating walls
  • decorative and privacy walls
  • sound-barrier gabion wall
  • gabion fences and low walls
  • gabion columns and borders
  • gabion landscaping and urban design
  • interior and exterior
  • gabion planters

The pre-assembled welded wire gabion baskets are shipped flat. Spirals and struts required to complete assembly are also provided and included in the price. Baskets are easily and quickly put together. Once fully assembled at the project site and put in place, the baskets are filled with rocks.

PVC Coated Welded Wire Gabion Baskets / Gabion Planter / Gabion Pillars
