High Strength Gabion Stone Fence / River Control Gabion Basket Easy Installation

Brand Name : ORIENTLAND

Model Number : ORWGH003

Certification : ISO

Place of Origin : ANPING

MOQ : 200units

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4800units per month

Delivery Time : 15-20days

Packaging Details : Carton, Pallet

Type : Welded Mesh

Material : Hot-Dipped Galvanized Wire, Low-Carbon Iron Wire

Hole shape : Square, Rectangular

Wire gauge : 4.0mm or according to specific require

Application : Gabions, Fence, Retaining wall, Shore protection, Garden

Aperture : 50×50mm, 75×75mm, 50×100mm

Gabion box size : 1m×0.3m×0.3m, 1m×0.3m×0.5m, 1m×0.3m×0.8m, 1m×0.3m×1m, 1.5m×0.3m×1m, 2m×0.3m×1m

Packing : Carton, Iron Pallet, Wooden Pallet

Sample : Free

Contact Now

Hot dipped galvanized Garden Gabion Baskets Aperture 5cm×10cm Size 1.5m×0.3m×0.3m

Features of Garden Gabion Baskets:

  • Easy for installation. No special technology needed.
  • Economic. Just fill the stone into the gabions and seal it.
  • Weather proof under natural destroy, corrosion resistant.
  • No collapse even under big scope of deforming.
  • Sludges in the stones is good for plant growing.
  • Mixed to form a integrity with the natural environment.
  • Less transport freight. It can be folded together for transport and further installation.

High Strength Gabion Stone Fence / River Control Gabion Basket Easy Installation

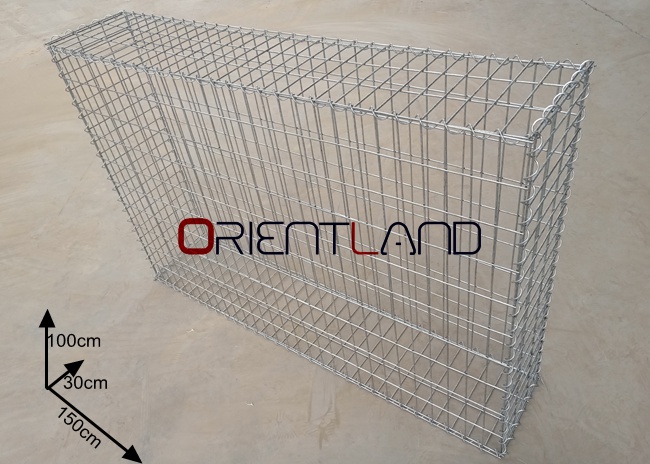

Specification of Welded Gabion Basket
Material Mesh Wire dia. Helical Wire dia. Aperture Dimension

Hot dipped galvanized wire

Galfan wire

Black wire

4.0mm

5.0mm

3.0mm

4.0mm

 5×5cm
5×10cm,
7.62×7.62cm,
10×10cm		 1×0.3×0.3m,
1×0.3×0.5m,
1×0.3×0.8m,
1×0.3×1.0m
1.5×0.3×1.0m
2.0×0.3×1.0m
All the specification could be customized

Surface treatment of the Welded Gabion basket:

  • PVC powder paint after welded (color can be custmoized)
  • PVC powder coated after welded(color can be custmoized)
  • Hot dipped galvanized after welded

Aperture of the Welded Gabion

High Strength Gabion Stone Fence / River Control Gabion Basket Easy Installation

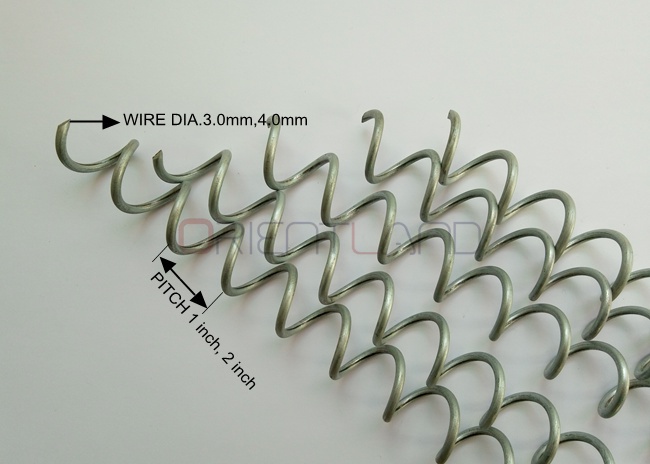

Helical Wire

High Strength Gabion Stone Fence / River Control Gabion Basket Easy Installation

Garden Gabion Baskets Installation Steps:

High Strength Gabion Stone Fence / River Control Gabion Basket Easy Installation

High Strength Gabion Stone Fence / River Control Gabion Basket Easy Installation

High Strength Gabion Stone Fence / River Control Gabion Basket Easy Installation

Normally each gabion basket include 6-7pcs welded panels(contains diaphragms), 12-16pcs helical binders wire and 2-4pcs corner stiffeners(can be replaced by bracing wire).


Welded Gabion Basket Application:

High Strength Gabion Stone Fence / River Control Gabion Basket Easy Installation

Packing and container loading:

  • Each unit put into a poly bag then packed with corrugated carton

High Strength Gabion Stone Fence / River Control Gabion Basket Easy Installation
