50×100mm Galvanized Welded Gabion Baskets Garden Border Walls Rectangular Hole

50×100mm Garden Border Welded Gabion Walls

A wire basket or container (or gabion basket) filled with rock, broken concrete, or other material, used in the construction of dams, retaining walls, landscapes and more.

Gabion walls offer so many options for character landscaping. Use a gabion wall to create an impressive statement flanking your property driveway.

A Gabion retaining wall works well even on a very small scale in your backyard to define a bank or to separate sections of your garden.

Gabion walls also make great additions to the patio area; think attractive surrounds for seating.

Or use a gabion simply as a low garden border or as part of a water feature, they can even make the perfect setting for a rock solid letterbox. The potential uses of gabion walls are endless.

Surface treatment of the Welded Gabion basket:

• PVC powder paint after welded (color can be custmoized)
• PVC powder coated after welded(color can be custmoized)
• Hot dipped galvanized after welded

Aperture of the Welded Gabion

Helical Wire

Steps of Welded Gabion Installation:

Step 1, Let two adjacent gabion panels be perpendicular to the ground, and the two sides should be at a 90 degrees angle as below picture. Prepare the helical wire to align with the panels joint, and adjust the angle to make the helical wire falls by itself.

Step 2, Move the connected panels to the bottom panel, align to the joints, insert the right helical wire. Or install the surrounding mesh panels first, then assemble the bottom. Could turn over the connected panels direction, so the helical wire will be falls by it's own weight.

Step 3, Continue to install the side panel, because the weight of mesh panels is increased at this time, it is not suitable for one person to move, so flip the cage 90 degrees and manually thread the helical wire.

Step 4, Install the diaphragm, prepare the right helical wire according to the diaphragm edge length. Could turned 90 degrees of the bottom, then insert the helical wire by hand. The vertical part directly thread the helical wire.

Step 5, Installed the last side panels.

Step 6, Put the gabion stiffener / bracing wire to the right point(the example case is too small and don't need the stiffener).

Step 7, Put kinds of stones or other decorative material in to the basket. To ensure the basket flat and beautiful, it is required to installed parallel reinforcement bars outside of the cage. Then installed the lid at last.

Step 8, The installation is complete.

Features of Welded Gabions:

• Easy for installation. No special technology needed.
• Economic. Just fill the stone into the gabions and seal it.
• Weather proof under natural destroy, corrosion resistant.
• No collapse even under big scope of deforming.
• Sludges in the stones is good for plant growing.
• Mixed to form a integrity with the natural environment.
• Less transport freight. It can be folded together for transport and further installation.

Welded Gabion Basket Application:

Packing and container loading: Each unit put into a poly bag then packed with corrugated carton

galvanized welded gabion baskets

50×100mm welded gabion baskets

50×100mm welded mesh gabion baskets

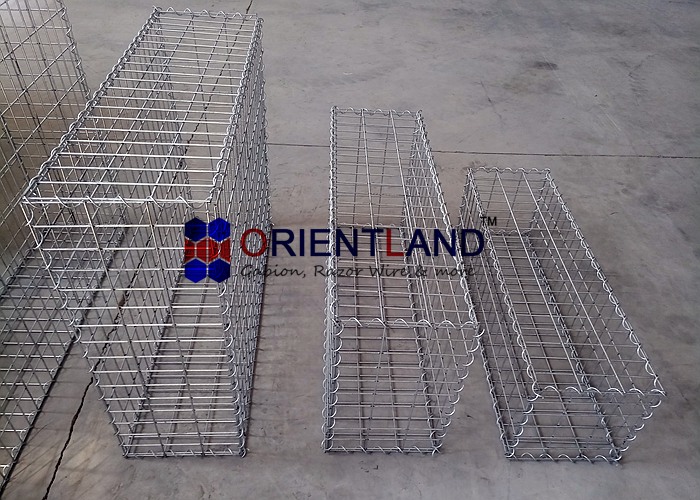

50×100mm Galvanized Welded Gabion Baskets Garden Border Walls Rectangular Hole Images
