Extreme Resistance Barb Wire CBT 60 Double Harpoon Razor Wire Fence

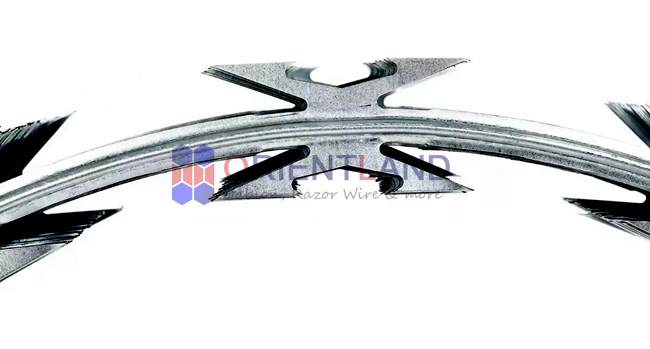

The CBT-60 has bright and beautiful blade types, offers good corrosion resistance. Razor wire CBT-60 can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils.

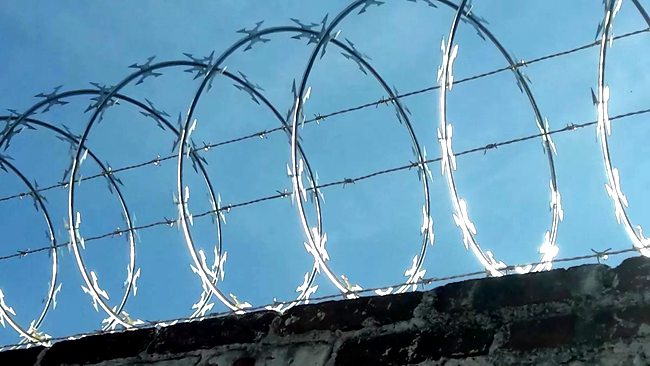

But mostly the CBT-60 is made to single coil razor wire. Single coil razor Wire is one kind of unclipped razor wire, sometimes referred to as “Helical” Razor wire is simply one single strand of Razor wire formed into a spiral. The problem with this is when extended a gap is created (as in the below picture) and intruders can spread the Razor wire apart to step through it.
Selecting clipped or unclipped Razor wire?
The simple answer is Clipped Razor wire offers a denser profile that has no gaps of a sufficient size for someone to be able to squeeze through.
Each loop is clipped to the next in either 3 or 5 places along the whole length of the concertina coil and therefore cant be over stretched.
Specification of Single Coil Razor Wire
| | | | | |
| Coil diameter | No. of Loops | Stretched Length | Blade Type | Notes |
| 450mm | 33 | 8m | CBT-60, CBT-65 | Single coil |
| 500mm | 41 | 10m | CBT-60, CBT-65 | Single coil |
| 700mm | 41 | 10m | CBT-60, CBT-65 | Single coil |
| 900mm | 53 | 13m | CBT-60, CBT-65 | Single coil |
| Thickness | Wire Dia | Barb Length | Barb Width | Barb Spacing |
| 0.6mm±0.05mm | 2.5mm±0.1mm | 60mm±2mm | 32mm±1mm | 96mm±2mm |
Packing of the Single Coil Raozr Wire
Application: Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.
Product Tags:
|
|
Extreme Resistance Razor Barbed Wire , Double Harpoon Security Razor Wire Images
|
