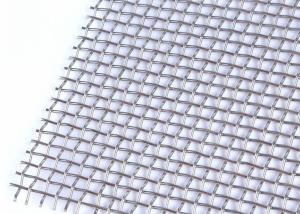

High Tensile Strength Woven Wire Mesh Screens For BBQ Corrosion Resistance

  • 1
  • 2

Brand Name : ORIENTLAND

Model Number : ORWW012

Certification : ISO,SGS

Place of Origin : ANPING, CHINA

MOQ : 30 rolls

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 rolls per week

Delivery Time : 15 days

Packaging Details : Pallet

Type : Woven wire mesh

Material : 65Mn high carbon steel wire, Low carbon steel wire, high tensile strength wire, stainless steel wire

Wire Diameter : 1.3mm-13mm

Usage : Chmical induetry, Oil, Filtration

Width : 3ft, 1m , 4ft

Length : 1m, 3m, 5m or as required

Aperture : 3mm-100mm

Application : vibrating screens, screen decks and trommels

Sample : Free

Contact Now

Stainless Steel Crimped Wire Mesh BBQ Mesh Wire Net Barbecue Grill Mesh

1. Raw Material:

Stainless steel wire, 65Mn high carbon steel wire, low carbon steel, high tensile strength spring steel wire.
2. Manufacture Method
The wires are crimped before they are woven. The weave styles include, but not limited to, intermediate crimp weave in both W and F directions, lock crimp weave, flat top crimp weave, and crimp weave in both W and F directions and intermediate crimp weave in either W or F direction.

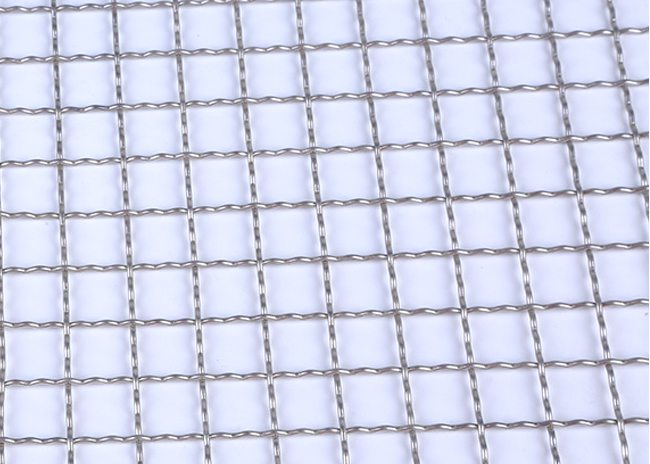

High Tensile Strength Woven Wire Mesh Screens For BBQ Corrosion Resistance

3. Specification
Wire diameter ranges from 1.37mm to 12.7mm, and aperture size 3mm to 100mm. The width and length of each mesh panel could be specified by the client.

No. Steel Grade Chemical Composition (%)
C Si Mn
1 #45 0.42-0.50 0.17-0.37 0.50-0.80
2 #50 0.47-0.55
3 #55 0.52-0.60
4 #60 0.57-0.65
5 #65 0.62-0.70
6 #70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60
Steel grades #45, #50 and #55 are medium-carbon steel. Steel grades #60, #65, #70, 65Mn and 72A are high carbon steel.

4.Features

  • Screen mesh surface is smooth without snubby phenomena.
  • Mesh panel is square without obliqueity.
  • Overall structure is tight without looseness.
  • Mesh size is uniform with very small tolerance.
  • Service life is very long.

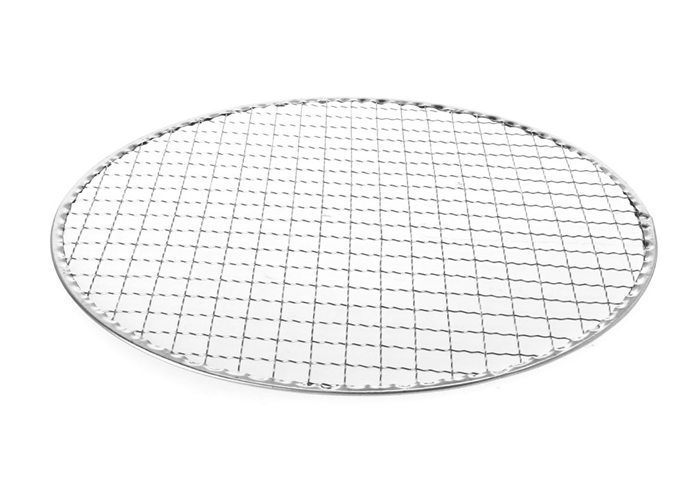

High Tensile Strength Woven Wire Mesh Screens For BBQ Corrosion Resistance

5. Uses
Quarry Screen Mesh is mainly used for primary filtration of mining, such as coal, iron ore, stones, etc. And also used in asphalt mixer equipment, mine vibrating screens, screen decks and trommels.

High Tensile Strength Woven Wire Mesh Screens For BBQ Corrosion Resistance
