MIL10 2.12x1.52x30.5m Zinc-Aluminum Alloy Steel Wire Hesco Barrier
Products introduction

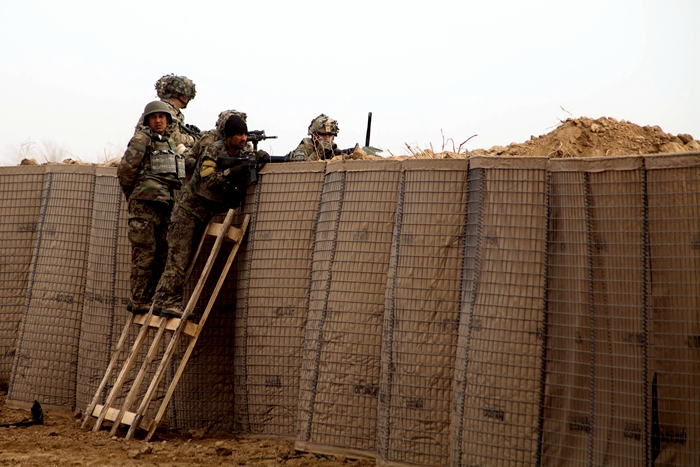

Hesco Barrier give quick response to threats from flood or arms. Hesco barrier is originally used to control flood and erosion of beaches and marshes. Recently, it has been frequently applied to military purposes. Quick installation and rigid structure ensures temporary or semi-permanent dike or barrier against explosions or small arms. They are effective and economical structures to protect safe of soldiers, vehicles, equipment and facilities in military sites, peace keeping, humanitarian and civilian operations.
The Bastion Barriers has been fortified by our defensive barriers and our work with the military. From a simple perimeter wall to a complex base infrastructure, our Welded Mesh Barrier products provide rapid expeditionary protection to personnel, equipment and critical assets in any terrain.
Specifications
| Material: | Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires. |

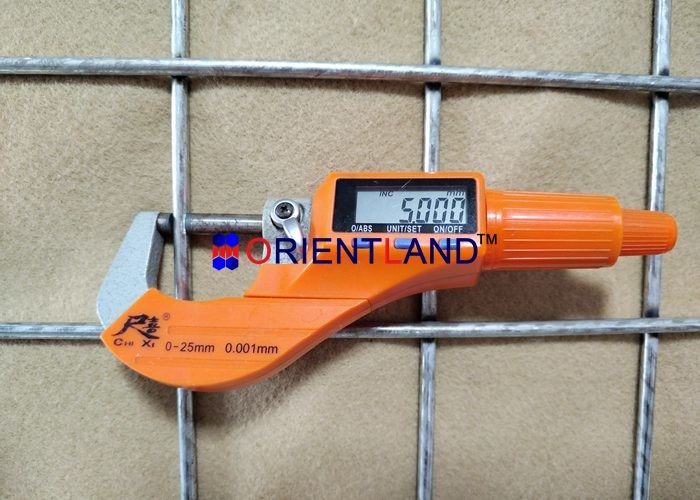

| Wire Diameter | 4 mm or 5 mm. |
| Mesh Size | 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc |

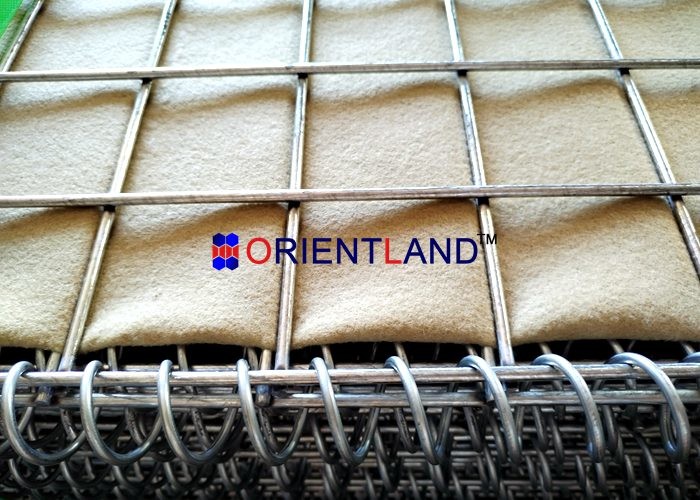

| Geotextile | 320g, 400g heavy duty non-woven polypropylene |
| Geotextile color | White, beige, Military Green and other customized colors. |

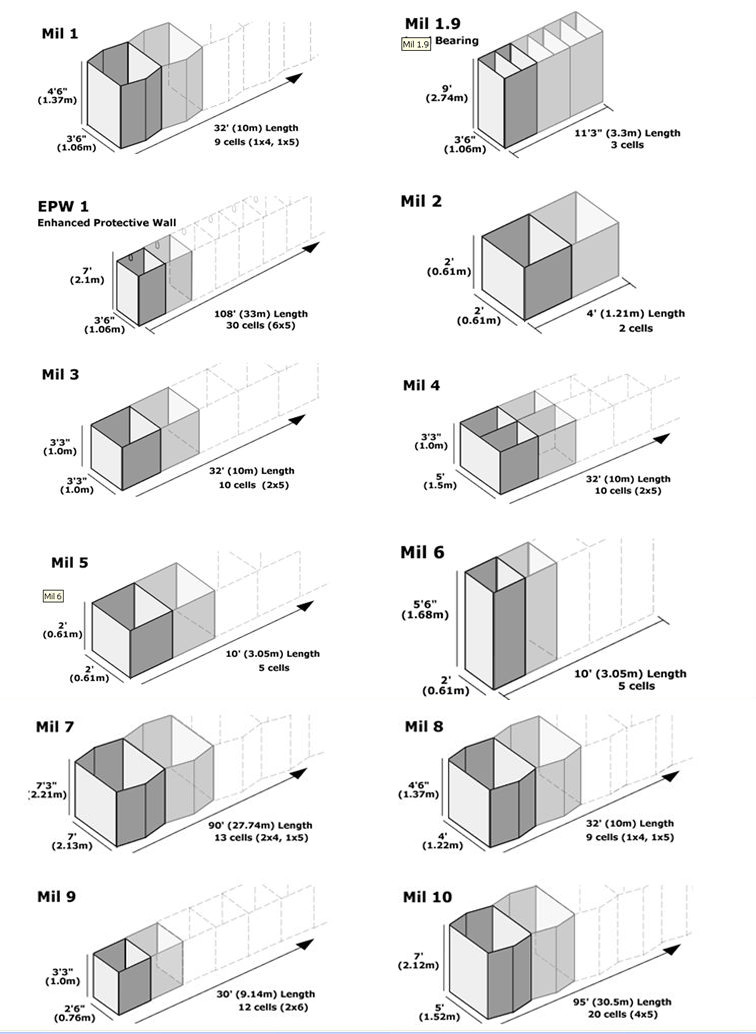

| Model | Height (M) | Width(M) | Length(M) | No. of cells |
| MIL1 | 1.37 | 1.06 | 10 | 5+4=9cells |
| MIL2 | 0.61 | 0.61 | 1.21 | 2cells |
| MIL3 | 1.0 | 1.0 | 10 | 5+5=10cells |
| MIL4 | 1.0 | 1.5 | 10 | 5+5=10cells |
| MIL5 | 0.61 | 0.61 | 3.05 | 5cells |
| MIL6 | 1.68 | 0.61 | 3.05 | 5cells |
| MIL7 | 2.21 | 2.13 | 27.74 | 5+4+4=13cells |
| MIL8 | 1.37 | 1.22 | 10 | 4+5=9cells |
| MIL9 | 1.0 | 0.76 | 9.146 | 6+6=13cells |

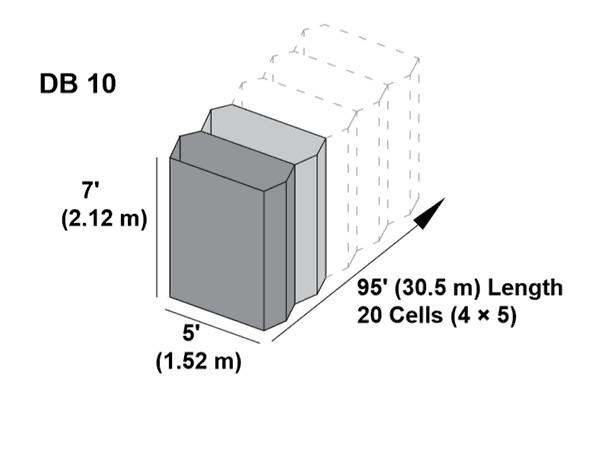

| MIL10 | 2.13 | 1.52 | 30.5 | 5+5+5+5=20cells |
| MIL1.9 | 2.74 | 1.06 | 3.3 | 6cells |
| EPW1 | 2.1 | 1.06 | 33 | ...... |
Barrier Installation
1. Unpack the collapsible wire mesh container from package.
2. Unfold the barrier and connect barriers to reach the designed length
3. Fill soil, sand or gravel into the container. The common machine is front end loader.
4. Compact the content
5. Add layers if required.
Product Features

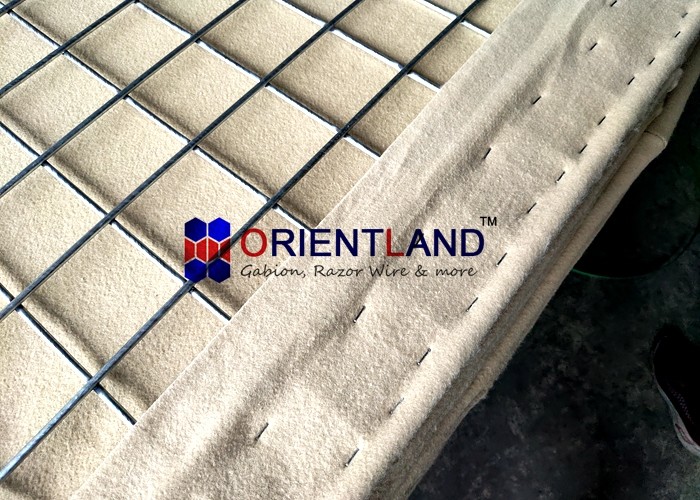

- All mil units are lined with a non-woven, uv-resistant geotextile with a five-year field life they can cope with harsh environments. each unit is available in beige (as default) or green standard colors.
- The units are available in a range of heights and widths to provide protection against various threats including vehicles.
- The geotextile-lined barriers are available in a recoverable format so you can quickly release the fill simply be removing the pin.
- Units can be transported in containers or flat-bed vehicles for a quick clean up.
Denfensive barrier applications:
- Defensive walls
- Forward operating bases
- Accommodation bunkers
- Perimeter security
- Blast and ballistic protection
- Command & control centres
- Training grounds & shoot houses
- Military compounds
- Ammunition storage
- Explosive traverses
- Vehicle check points
- Hostile vehicle mitigation
Advantages
Once filled with soil, sand or gravel, Securest forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemyfire.
Securest bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.

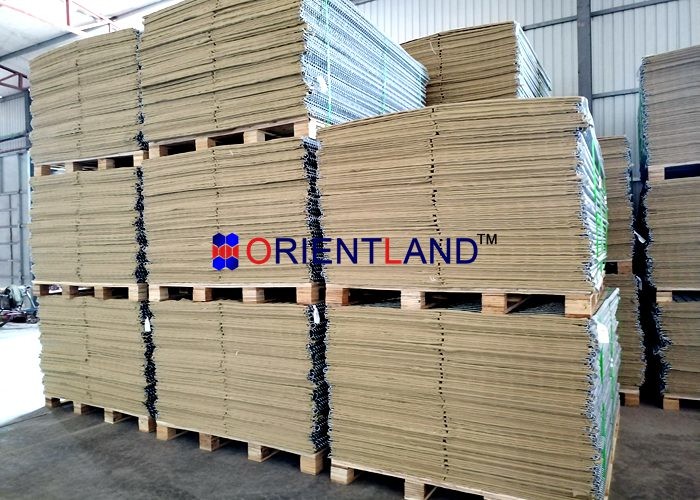

Securest can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.
Securest provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our Securest do ten
times the work.
