MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

Brand Name : JQ, Orientland

Model Number : JQDB04

Certification : ISO9001:2015,SGS

Place of Origin : Anping, China

MOQ : 50Units

Price : USD9.9-20.9/Unit

Supply Ability : 3000 Units per Month

Delivery Time : 10 to 15 days

Packaging Details : Wooden Pallet, Iron Pallet or nude packing

Size : 1.0mx1.5mx10m

Number of cells : 10cells

Mesh Diameter : 4.0 mm

Mesh Size : 76.2X76.2mm

Spring Wire Diameter : 4.0mm

Geotextile Density : 250g/m2

Surface Treatment : Hot Dipped Galvanized before Welding

Advantage : Easy Assembled

Main Usage : Camp Bastion

Type : Protective Equipment

Service Life : 15-20 years

High Light : HESCO Defensive Barriers, HESCO Bastion

Contact Now

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

Products introduction

The defensive barriers have been used around the world to create barriers for perimeter protection, construct temporary accommodation, and provide high level security control.

The Bastion barriers are strong structures which are composed of collapsible wire mesh container and non-woven polypropylene geotextile. According to different use environments, the defensive barriers can be made into standard and recoverable types for your choice. From a simple perimeter wall to a complex base infrastructure, our Welded Mesh Barrier products provide rapid protection to personnel, equipment and critical assets in any terrain.

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

Specifications

Material: Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires.
Wire Diameter 4 mm or 5 mm.
Mesh Size 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc
Geotextile 320g, 400g heavy duty non-woven polypropylene
Geotextile color White, beige, Military Green and other customized colors.

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh BarriersMIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

Model
Height (M) Width(M) Length(M) No. of cells
MIL1 1.37 1.06 10 5+4=9cells
MIL2 0.61 0.61 1.21 2cells
MIL3 1.0 1.0 10 5+5=10cells

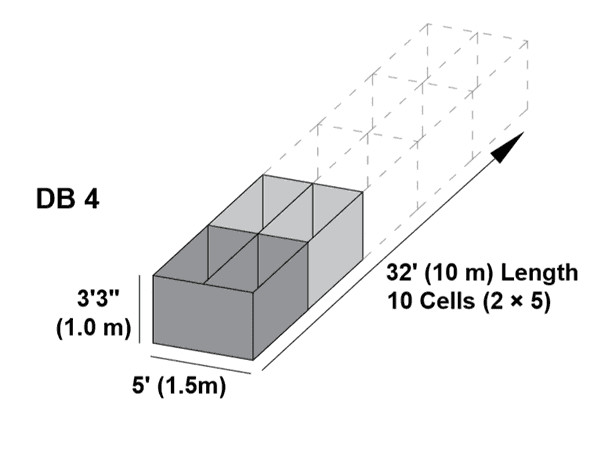

MIL4 1.0 1.5 10 5+5=10cells
MIL5 0.61 0.61 3.05 5cells
MIL6 1.68 0.61 3.05 5cells
MIL7 2.21 2.13 27.74 5+4+4=13cells
MIL8 1.37 1.22 10 4+5=9cells
MIL9 1.0 0.76 9.146 6+6=13cells
MIL10 2.13 1.52 30.5 5+5+5+5=20cells
MIL1.9 2.74 1.06 3.3 6cells
EPW1 2.1 1.06 33 ......

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers
Barrier Installation

The defensive barriers are engineered to provide a rapidly deployed high-level security fence for the protection of critical infrastructure and assets.

Combining the central concept of the Concertainer system, these fences are ground-mounted and proven to withstand vehicle borne attacks.

Each model is ground mounted, can be built on undulating or sloping ground and available in heights up to 5m (16in), creating a formidable barrier.

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers

Product Features

  • All mil units are lined with a non-woven, uv-resistant geotextile with a five-year field life they can cope with harsh environments. each unit is available in beige (as default) or green standard colors.
  • The units are available in a range of heights and widths to provide protection against various threats including vehicles.
  • The geotextile-lined barriers are available in a recoverable format so you can quickly release the fill simply be removing the pin.
  • Units can be transported in containers or flat-bed vehicles for a quick clean up.

MIL denfensive barrier applications:

  • defensive walls
  • forward operating bases
  • accommodation bunkers
  • perimeter security
  • blast and ballistic protection
  • command & control centres
  • training grounds & shoot houses
  • military compounds
  • ammunition storage
  • explosive traverses
  • vehicle check points
  • hostile vehicle mitigation

MIL4 1.5m Width reusable Heavy Duty Military Hesco Wire Mesh Barriers
