MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

Brand Name : JQ, Orientland

Model Number : JQDB07

Certification : ISO9001:2015,SGS

Place of Origin : Anping, China

MOQ : 50Units

Price : USD9.9-20.9/Unit

Supply Ability : 3000 Units per Month

Delivery Time : 10 to 15 days

Packaging Details : Wooden Pallet, Iron Pallet or nude packing

Size : 2.21mx2.13mx27.74m

Number of cells : 13cells

Mesh Diameter : 5.0 mm

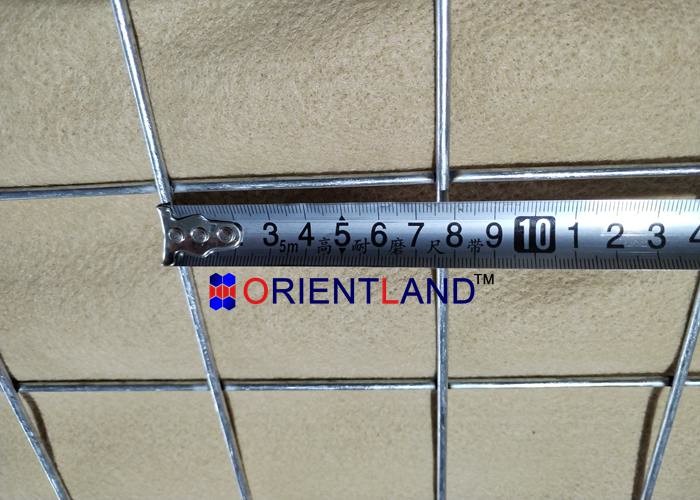

Mesh Size : 76.2X76.2mm

Spring Wire Diameter : 4.0mm

Geotextile Density : 300g/m2

Surface Treatment : Hot Dipped Galvanized before Welding

Advantage : Easy Assembled

Main Usage : Camp Bastion

Type : Protective Equipment

Service Life : 15-20 years

High Light : HESCO Defensive Barriers, HESCO Bastion

Contact Now

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

Products introduction

The Expeditionary Protective Barrier Units is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

Specifications

Material: Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires.
Wire Diameter 4 mm or 5 mm.
Mesh Size 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc
Geotextile 320g, 400g heavy duty non-woven polypropylene
Geotextile color White, beige, Military Green and other customized colors.

Model
Height (M) Width(M) Length(M) No. of cells
MIL1 1.37 1.06 10 5+4=9cells
MIL2 0.61 0.61 1.21 2cells
MIL3 1.0 1.0 10 5+5=10cells
MIL4 1.0 1.5 10 5+5=10cells
MIL5 0.61 0.61 3.05 5cells
MIL6 1.68 0.61 3.05 5cells

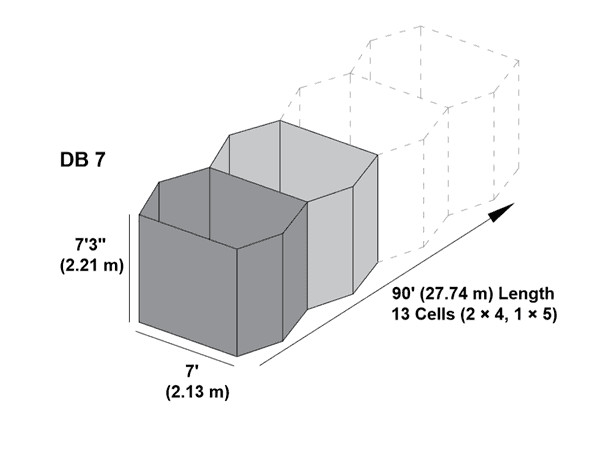

MIL7 2.21 2.13 27.74 5+4+4=13cells
MIL8 1.37 1.22 10 4+5=9cells
MIL9 1.0 0.76 9.146 6+6=13cells
MIL10 2.13 1.52 30.5 5+5+5+5=20cells
MIL1.9 2.74 1.06 3.3 6cells
EPW1 2.1 1.06 33 ......

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System
Barrier Installation

The defensive barriers are engineered to provide a rapidly deployed high-level security fence for the protection of critical infrastructure and assets.

Combining the central concept of the Concertainer system, these fences are ground-mounted and proven to withstand vehicle borne attacks.

Each model is ground mounted, can be built on undulating or sloping ground and available in heights up to 5m (16in), creating a formidable barrier.

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System

Product Features

  • All mil units are lined with a non-woven, uv-resistant geotextile with a five-year field life they can cope with harsh environments. each unit is available in beige (as default) or green standard colors.
  • The units are available in a range of heights and widths to provide protection against various threats including vehicles.
  • The geotextile-lined barriers are available in a recoverable format so you can quickly release the fill simply be removing the pin.
  • Units can be transported in containers or flat-bed vehicles for a quick clean up.

MIL denfensive barrier applications:

  • defensive walls
  • forward operating bases
  • accommodation bunkers
  • perimeter security
  • blast and ballistic protection
  • command & control centres
  • training grounds & shoot houses
  • military compounds
  • ammunition storage
  • explosive traverses
  • vehicle check points
  • hostile vehicle mitigation

MIL7 2.21m Defensive Barrier Heavy-Duty Non-Woven Polypropylene Geotextile Lined Barrier System
