656 Double Wire Fence Twin Wire Fence

Brand Name : ORIENTLAND

Model Number : ORDWF001

Certification : ISO

Place of Origin : ANPING

MOQ : 100units

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 units per week

Delivery Time : 10-15days

Packaging Details : Iron Pallet, Wooden Pallet

Type : Fencing, Trellis & Gates

Surface Treatment : PVC powder coated, Hot dipped galvanized

PVC coated color : Black, Green

Wire diameter : 6mm

Hole size : 50×200mm

Height : 630-2500mm

Width : 2500mm

Post : H post, Square post

Application : Fence mesh, prison mesh fence, residential fence

Contact Now

656 Double Wire Fence Twin Wire Fence

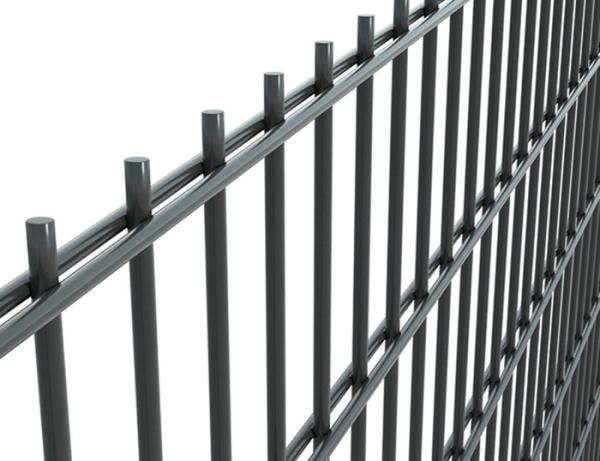

Products Description:

Double wire fence, known as double horizontal wire fence, 2d panel fence, or twin wire fence. Each welded point is welded
with one vertical and two horizontal wires; compared with ordinary welded fence panels, double wire fence has higher
strength and can withstand larger impacts and high winds.
Double wire fence is made of high quality low carbon steel wire, the surface treatment is hot dip galvanized, powder coating

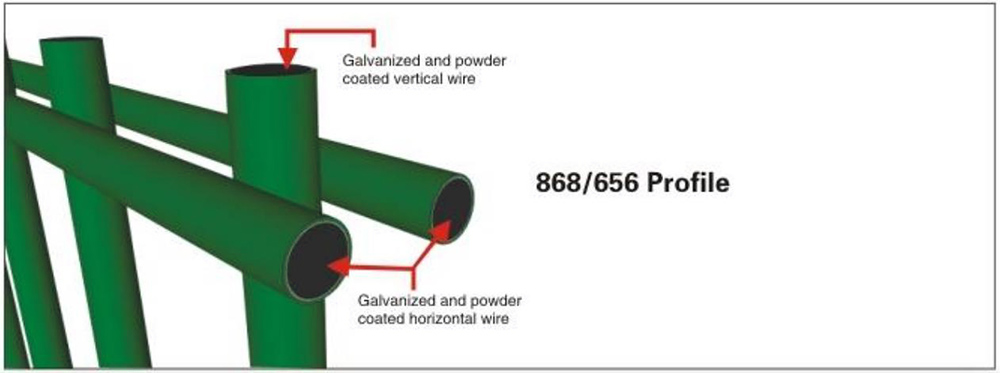

or PVC coating, which can make double wire fence have a longer service life. The most common styles include 656 double
wire fence and 868 double wire fence, 656 means horizontal direction is two 6mm thick wire, vertical direction is one 5mm
wire.

  • Double wire fence, compared with ordinary fence, has higher strength, can withstand stronger impact and can prevent intentional damage.
  • The galvanized and powder coated surface of double wire fence has good anti-rust and anti-corrosion ability, which can withstand various harsh environmental conditions.
  • The application of double wire fence is very wide, it can be used in house fence, park fence, factory fence, road fence and so on.

656 Double Wire Fence Twin Wire Fence

Height * Width (mm) Mesh Size(mm) Wire Diameter(mm) Post Type(mm) Post Height
630*2500

50*200

6/5/6

6/6/6

8/6/8

Square Post

40*60

40*80

60*60

60*80

H Post

55*100

40*70

Wall Thickness

1.5-2.0

Denpend on the height of the mesh panel.
830*2500
1030*2500
1230*2500
1430*2500
1630*2500
1830*2500
2030*2500
2230*2500
2430*2500

Surface Treatment:

Hot dipped galvanzied after welded

Powder painted after galvanized wire welding

PVC coated after galvanized wire welding

All special size can be customized.

According to the thickness of the wire diameter, including 656 double wire fence and 868 double wire fence,other
specifications can be customized.

● 868 means horizontal direction is two 6mm thick wire, vertical direction is one 5mm wire.

656 Double Wire Fence Twin Wire Fence

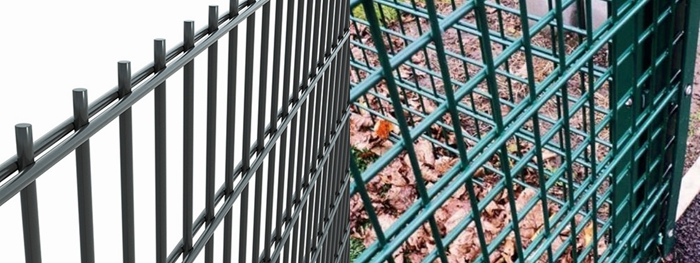

According to the number of horizontal wire, it can be designed as two horizontal wires on each horizontal line, or two
horizontal wire on every three horizontal lines.

● Doubled every horizontal wire provides a stronger structure for the fence.
● Double wire on every three horizontal lines can save cost and also make the fence stronger compared to a normal
fence.

656 Double Wire Fence Twin Wire Fence

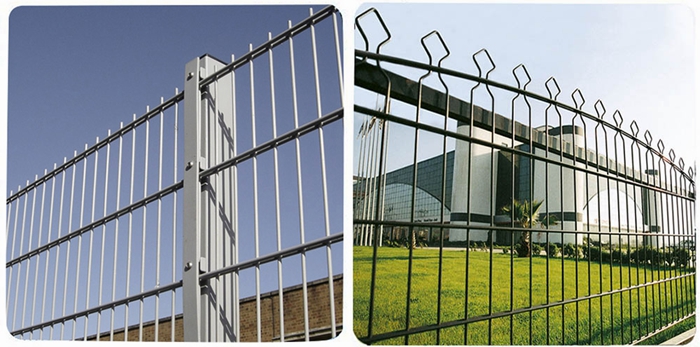

According to the top style, it can be divided into flat-topped double wire fence, or arch-topped double wire fence.
● Flat topped twin wire fence is the most widely used type of double wire fence with low cost.
● Arch topped 2d panel fence appearance is more beautiful, ideal for residential fence, park fence, etc.

656 Double Wire Fence Twin Wire Fence

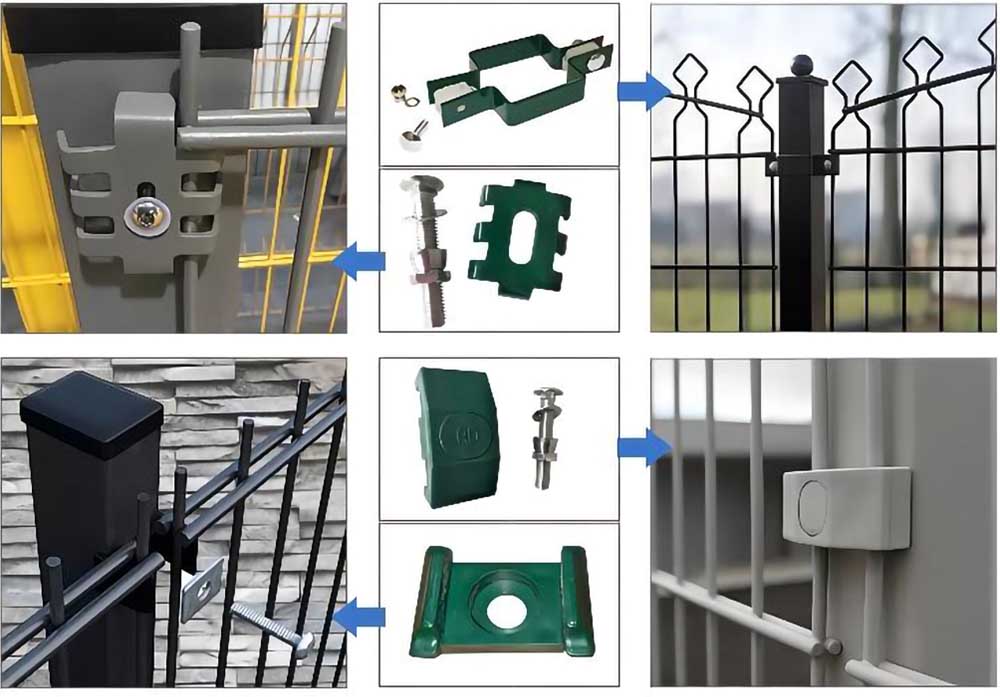

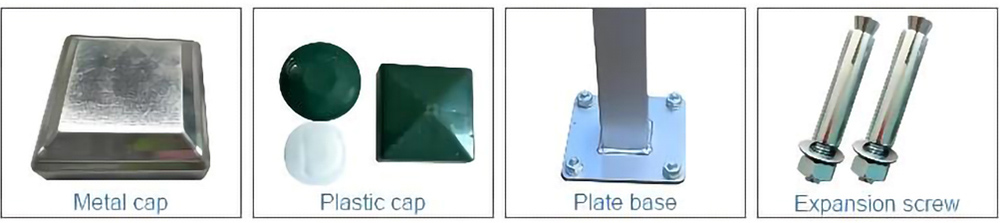

Installation Method and Accessories of double wire fence

Different installation methods can be chosen for the double wire fence, and with different accessories.

  • Galvanized and then powder-coated iron clips and stainless steel security screws.
  • UV-protected plastic clips and stainless steel anti-theft screws.

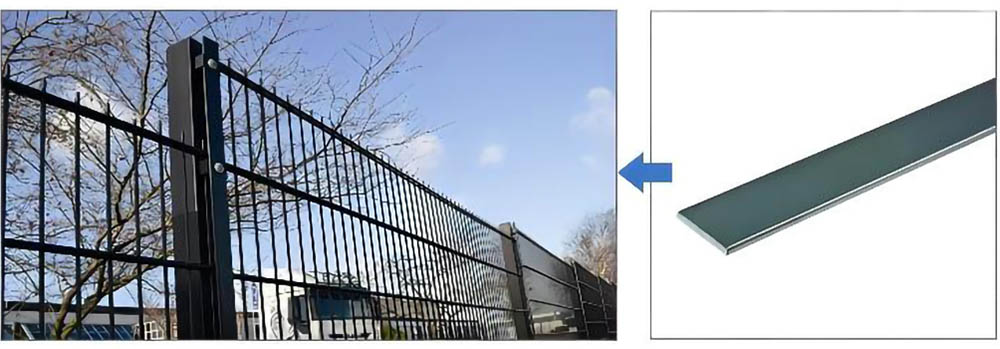

  • Flat iron and stainless steel security screws.

656 Double Wire Fence Twin Wire Fence

656 Double Wire Fence Twin Wire Fence

656 Double Wire Fence Twin Wire Fence

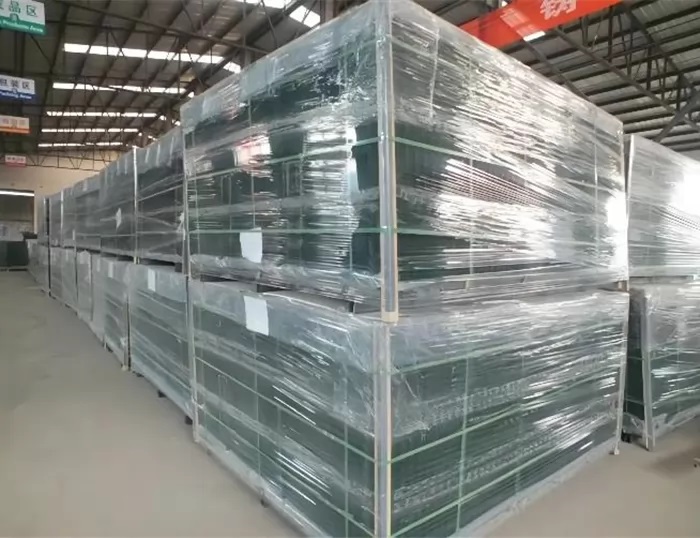

Packing and Delivery

656 Double Wire Fence Twin Wire Fence

656 Double Wire Fence Twin Wire Fence
